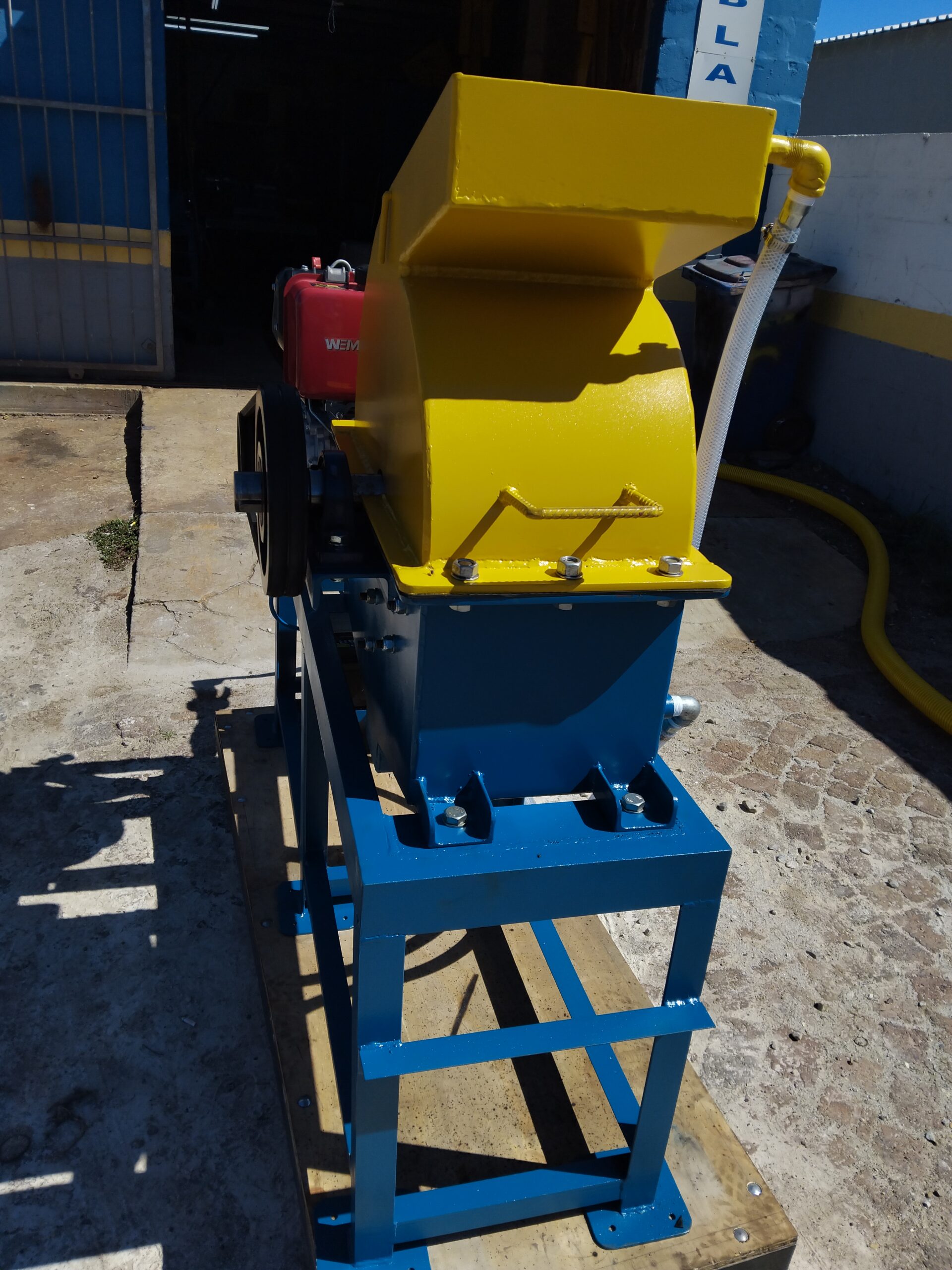

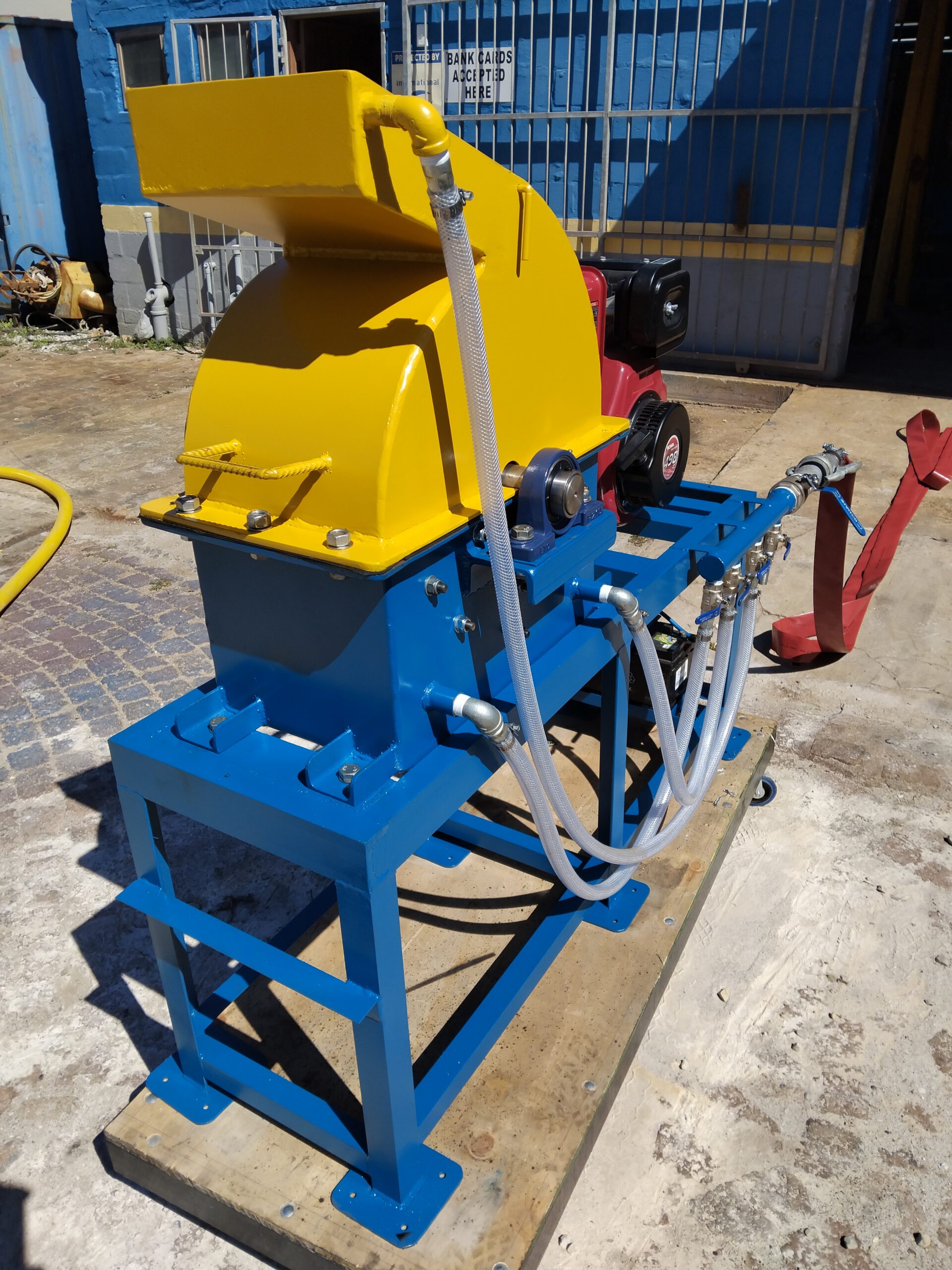

Hammer Mill.

• Ideal for recovering gold from gravel and other material, can be used for other materials also.
• Removable top section on a custom made hinge,
• 8mm bennox wear steel plates inside,
• Diesel driven or 3 phase electrical motor,
• Diesel engine is electric start, with battery included,
• Solid steel frame with bolt down holes to a concrete base,
• Double grove pully,
• 3 water spray bars: 1 at feeding area, 2 internal to clean machine or maximize water flow for sluice box,
• Water destitution manifold with 4 outlets and 2 inch water inlet for water pump,
• 16 wear plate steel hammers, 40mm thickness,
• Large feeding Shute,
• Easy to maintain unit after every day's work,
• Steel perforated screen, or alternative options are available,
• single outlet point with outlet trough, matching for sluice box,
• Sluice box, 2.3 m long complete with gold carpet, mesh and riffles, Adjustable legs included,

Extras supplied with this unit:

• Set of Allen keys,
• Spare set of belts,
• Grease gun and tub of grease,
• 2 inch water pump, petrol driven,
• 6 m of suction pipe with strainer and coupling,
• 15m discharge hose with couplings, [More hose can be ordered, if needed]
